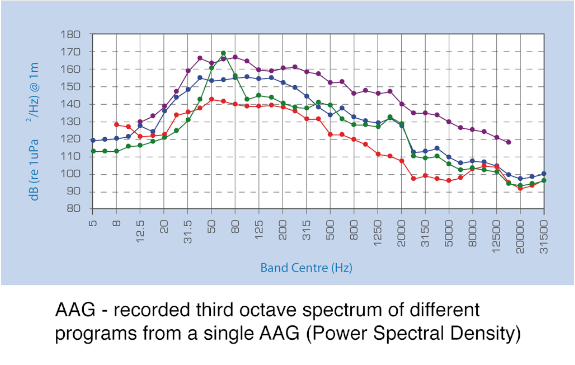

Stacks Image 7
Advanced Acoustic Generator (AAG)
Parameter Value
Length 2056 mm
Turbine Shroud Diameter 750 mm
Weight 222 kg in air/113 kg in seawater
Broadband frequency range From < 5 Hz to > 30 kHz
Fundamental frequency range 5 Hz to 250 Hz inclusive
Line structure (tonals) Programmable
Tow load 240 kgf at 8 knots
Frequency roll off 20 to 25 dB per frequency decade
Propagation Omnidirectional

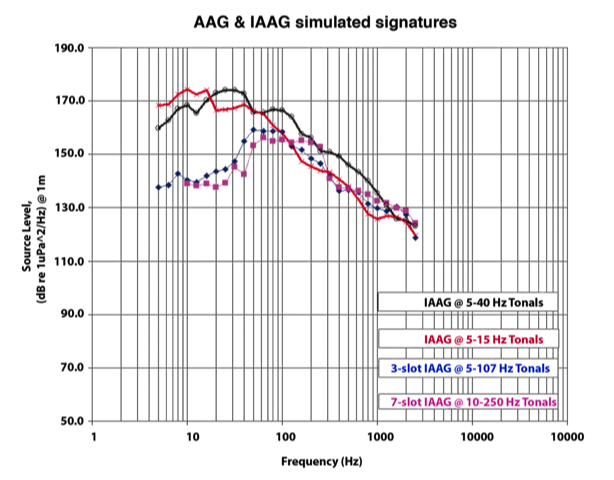

Stacks Image 8
