Advanced Acoustic Generarator (AAG)

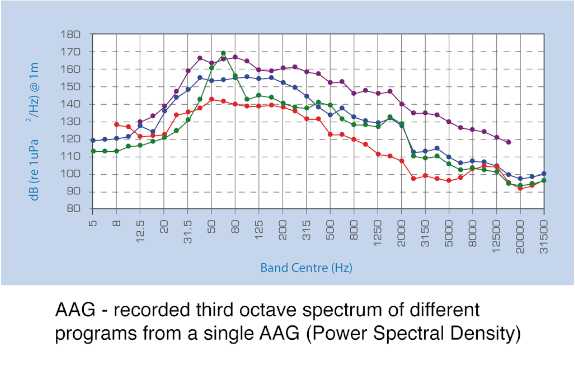

Stacks Image 1
Infrasonic Advanced Acoustic Generator (IAAG)
Parameter Value
Length 3700 mm
Turbine Shroud Diameter 1324 mm
Weight 1220 kg in air/368 kg in seawater
Broadband frequency range From < 5 Hz to > 30 kHz
Fundamental frequency range 5 Hz to 40 Hz inclusive
Line structure (tonals) Programmable
Tow load 900 kgf at 8 knots
Frequency roll off 20 to 25 dB per frequency decade
Propagation Omnidirectional

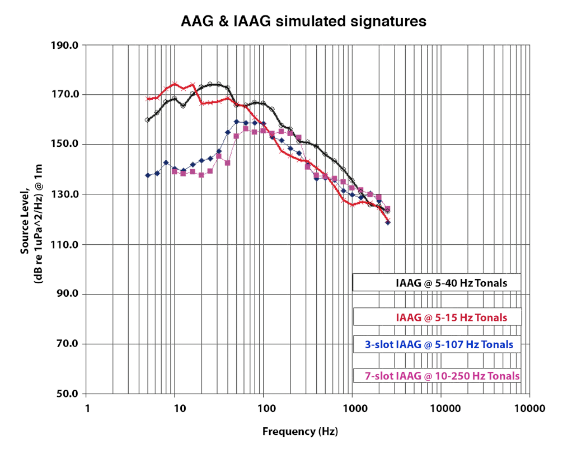

Stacks Image 2
